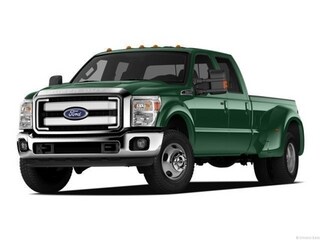

The standard features of the Ford F-450 XL include Powerstroke 6.7L V-8 400hp engine intercooled turbo, 6-speed automatic transmission with overdrive, 4-wheel anti-lock brakes (ABS), side seat mounted airbags, Safety Canopy System curtain 1st and 2nd row overhead airbags, air conditioning, 17" forged aluminum wheels, driveline traction control, four-wheel drive, AM/FM stereo with 2 speakers, and a systems monitor. (en)

Quick Stats

Specifications

• Convenience Features
• Off-Road Capability
• Entertainment Features
• Warranty
• Seats and Trim
• Specs and Dimensions
• Body Exterior
• Powertrain
• Safety and Security
• Suspension/Handling
• Lighting, Visibility and Instrumentation

• Air conditioning
• Tilt steering wheel
• Telescoping steering wheel
• Passenger vanity mirror
• Front beverage holders
• Overhead console

• Approach angle - 20 deg
• Departure angle - 18 deg
• Ground clearance (min) - 203mm (8.0")
• Ramp breakover angle - 17 deg

• AM/FM radio
• Speakers - 2

• Basic warranty - 36 months/60,000km
• Powertrain warranty - 60 months/160,000km
• Corrosion perforation warranty - 60 months/ unlimited distance
• Roadside assistance coverage - 60 months/100,000km

• Max seating capacity - 6
• Front seats - bench
• Front centre armrest - w/storage
• Rear seats - split-bench
• Split folding rear seat

• Engine displacement - 6.7 L
• Engine horsepower - 400hp @ 2,800RPM
• Engine torque - 800 lb.-ft. @ 1,600RPM
• Engine bore x stroke - 99.1mm x 108.0mm (3.90" x 4.25")
• Compression ratio - 16.20 to 1
• Payload - 2,386kg (5,260lbs)
• Curb weight - 3,709kg (8,178lbs)
• GVWR - 6,033kg (13,300lbs)
• Towing capacity - 7,938kg (17,500lbs)
• Exterior length - 6,680mm (263.0")
• Exterior body width - 2,438mm (96.0")
• Exterior height - 2,024mm (79.7")
• Wheelbase - 4,369mm (172.0")
• Turning radius - 7.7m (25.2')
• Front legroom - 1,044mm (41.1")
• Rear legroom - 1,069mm (42.1")
• Front headroom - 1,034mm (40.7")
• Rear headroom - 1,036mm (40.8")
• Front hiproom - 1,717mm (67.6")
• Rear hiproom - 1,717mm (67.6")
• Front shoulder room - 1,727mm (68.0")
• Rear shoulder room - 1,727mm (68.0")
• Passenger volume - 3,780L (133.5 cu.ft.)
• Interior cargo volume - 1,659 L (59 cu.ft.)
• Interior maximum cargo volume - 1,659 L (59 cu.ft.)

• Left rear passenger door - conventional
• Right rear passenger - conventional
• Rear cargo - tailgate
• Rear step bumper
• Trailer hitch receiver

• Engine litres - 6.7
• Compressor - intercooled turbo
• Cylinder configuration - V-8
• Horsepower - 400hp @ 2,800RPM
• Torque - 800 lb.-ft. @ 1,600RPM
• Number of valves - 32
• Engine location - front
• Recommended fuel - diesel
• Block heater
• Transmission - 6 speed automatic
• Mode select transmission
• Manual-shift auto - SelectShift
• Drive type - four-wheel
• Limited slip differential
• Fuel tank capacity - 142.0L

• 4 wheel disc brakes
• ABS brakes
• Brake assist
• Dual front impact airbags
• Dual front side impact airbags
• Overhead airbag
• Ignition disable
• Traction control

• Front anti-roll bar
• Rear anti-roll bar
• Power steering
• Alloy wheels
• Front tires - 245/75SR17.0E
• Rear tires - 245/75SR17.0E
• Dual rear wheels
• Wheel size - 17"

• Variably intermittent wipers
• Front reading lights
• Rear reading lights
• Tachometer
• Outside temperature display
